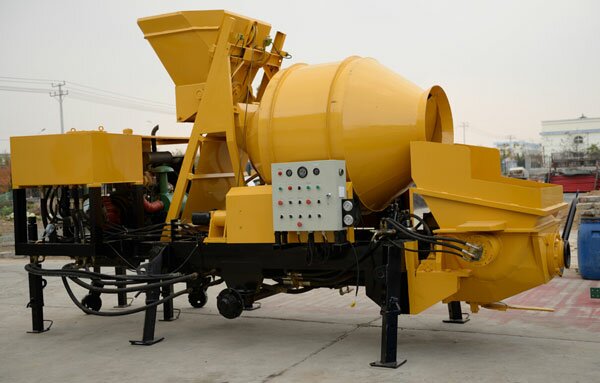

Introduction of Diesel Engine Concrete Mixer with Pump:

HBT series diesel engine concrete mixer with pump adopts full automatic operation system. This type concrete mixer truck with pump combines the functions of mixing and high pressure pumping all-in-one. Double cylinder hydraulic pumping system greatly enhances the overall performance of concrete pump and ensures the concrete pump work under harsh conditions.


ChangLi Machinery provides customers good quality concrete mixer with pump. With reasonable concrete pump mixer price, our concrete mixer pump is favored by customers in china and oversea countries. We also have mini concrete mixer pump and concrete pump mixer truck for customers to choose. If you are interested in our concrete mixer with pump for sale, please feel free to contact us.

Our concrete pump in Pakistan

Concrete mixer pump exported to Guinea

Concrete mixer pump exported to South Africa

Features of Diesel Engine Concrete Mixer Pump:

1. Adopt world-level advanced technology.

2. Combination of the mixer and pump requires less working space.

3. All-hydraulic pumping system ensures stable operation.

4. Equipped with wired remote control, which makes it more convenient to operate.

5. Diesel engine ensures normal operation without electricity.



Technical Process of Concrete Pump with Mixer:

Concrete pump mixer is the combination of mixing system and pumping system. The hoisting system brings all the materials into mixing drum to mix. When the mixing is finished, the mixed concrete will be automatically discharged into the hopper for pumping. (During the Pumping process, the mixer continues to mix concrete). When pumping concrete, with the power provided by the hydraulic oil, the piston in the two main cylinders repeat the reciprocating movement, one cylinder forward, the other cylinder back. With the help of the swing cylinders, the S valve kept switching between the two concrete cylinders to achieve continuous pumping.
